5T Double Drum Hydraulic Puller Tensioner Hand Tractor Winch 60KN Tractor Force

5T Double Drum Hydraulic Puller Tensioner Hand Tractor Winch 60KN Tractor Force
5T Double Drum Hydraulic Puller Tensioner Hand Tractor Winch 60KN Tractor Force

Large Image :  5T Double Drum Hydraulic Puller Tensioner Hand Tractor Winch 60KN Tractor Force

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: 12-A 12-B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Std exported packing
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200sets/month
Detailed Product Description
Traction Force: 60KN Name: Hand Tractor
Feature: 2 Drums Model: 12-B
Ground Clearance: 150mm Tractor Force: 60KN
High Light:

hydraulic cable tensioner

,

tension stringing equipment

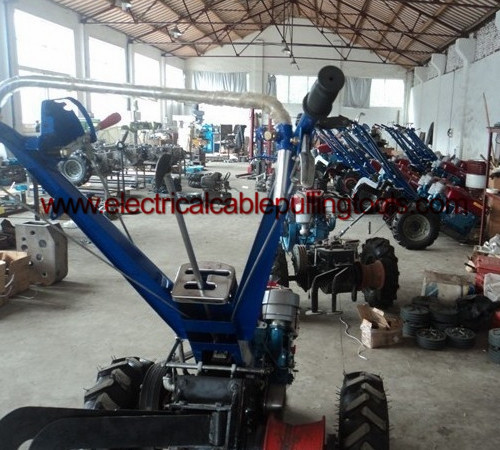

5T Double Drum Hand Tractor Winch / Walking Tractor Winch / Tractor Machine



5 Ton Hand Tractor Traction Machine Winch for Pulling applies to cable pulling during overhead line transmission and hoisting,lifting cargo.It comes with a walking device and can carry the trailer with heavy objects and other tools behind it.



Gear reversalⅡ reversalⅡ

(T)

Traction force

6 37 20 12 / /

(M/MN)

Traction speed

11.7 18.9 34.4 55.6 6.2 21.3



Cable Pulling Machine 5 Ton Hand Tractor Winch with Double Drum Winch

Item number Model

(MM)

Ground

Clearance

(MM)

wheel-base

(HP)

Power

(RPM)

speed

(KM/H)

Travel speed

(MM)

Outline

size

(KG)

Weight

09171 12-A 150 1040 15 2000 3-13 2670x1040x1300 550
09172 12-B 150 1040 15 2000 3-13 2670x1040x1300 600




Feature: It is modified from DONGFENG 12 hand tractor.Double Capstan, Seven Grooves,It causes a little damage to the wire rope.

1)four gear,forward gear and reverse gear

2)speedy and convenient

3)high quality

4)easy operation

5)Reliable
