Motorized Hydraulic Compressor Hydraulic Crimping Tool With Hexagon Head

Motorized Hydraulic Compressor Hydraulic Crimping Tool With Hexagon Head
Motorized Hydraulic Compressor Hydraulic Crimping Tool With Hexagon Head Motorized Hydraulic Compressor Hydraulic Crimping Tool With Hexagon Head

Large Image :  Motorized Hydraulic Compressor Hydraulic Crimping Tool With Hexagon Head

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: YJD2000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Wooden case
Delivery Time: 3-5work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/week
Detailed Product Description
Crimping Force: 100T Use: Pressing Tube
Weight: 50kg License: ISO CE
Stroke: 24mm After Service: Avaiable
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons 200 tons



Split-type Hydraulic Crimping Pliers Production:

Item number

16103 16103A 16104 16105 16106

Model

YJD-600 YJD-1000 YJD-1250 YJD-2000 YJD-3000

Crimping

force

60T 100T 125T 200T 300T

Crimping

range

14-55mm 14-76mm 14-76mm 14-90mm 14-100mm

Crimping

type



hexagon crimping



hexagon crimping

Stroke

24mm 24mm 35mm 35mm

Heigth

approx.370mm approx.480mm

(KG)

Weight

approx.N.W20KG

G.W30KG

approx.N.W30KG

G.W40KG

approx.N.W50KG

G.W60KG

approx.N.W85KG

G.W95KG

approx.N.W120KG

G.W130KG

Package

wooden case wooden case



QY 100 and QY 200 Hydraulic press machines with crimping head for aluminum stube and steel tube

1, 100T for terminal LGJ 720, and 200T for LGJ1440

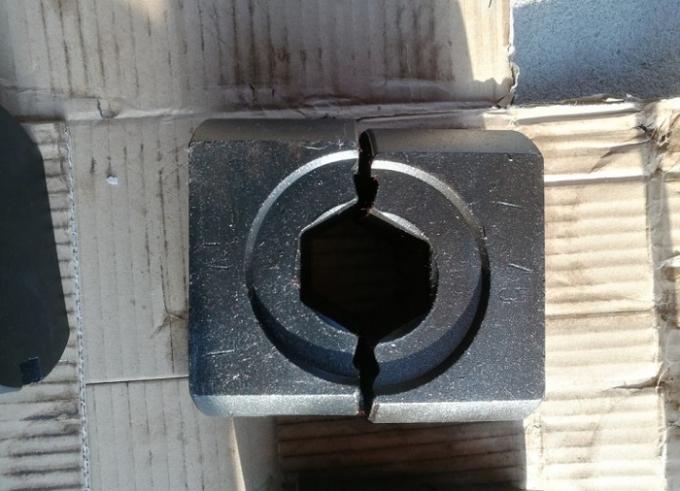

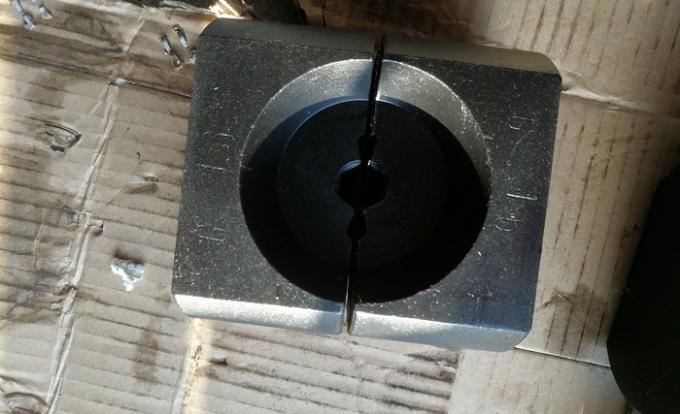

2. Dies can be accordingly made per demands

3. We have the std die spe list, pls freely tell us, and Tech will give you best options.

4. Hydraulic crimping pliters, Donghuan Brand.

Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons 200 tons

100T Working with an electric hydraulic pump or a petrol power hydraulic pump ( 80 MPa )

200T needs Hydraulic pump should be the rapid super high pressure hydraulic pump (double stage pump out put)



Motorized Hydraulic Compressor Hydraulic Crimping Tool With Hexagon Head 0Motorized Hydraulic Compressor Hydraulic Crimping Tool With Hexagon Head 1
