5.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle

5.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle
5.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle 5.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle 5.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle

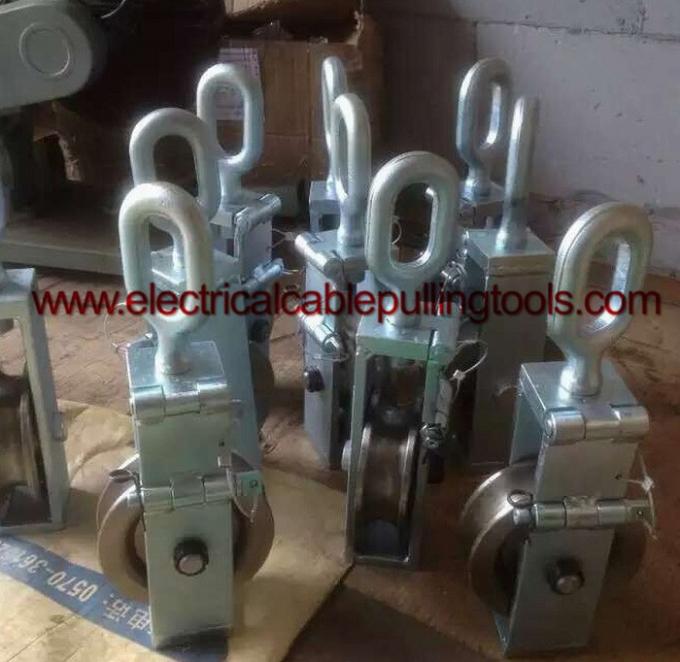

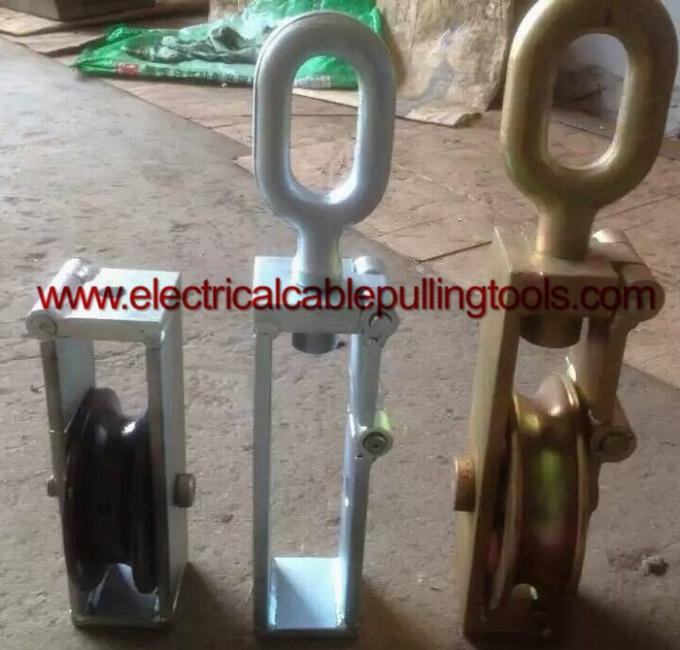

Large Image :  5.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle

Product Details:
Place of Origin: ningbo china
Brand Name: Linkai
Certification: iso ce
Model Number: SH 30J
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Get the latest
Packaging Details: wooden case
Delivery Time: 5-8work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/week
Detailed Product Description
Model: SH30J Type: Terminal Tackle
Rated Load: 30KN Dia Of Wheel: 140mm
Widthh Of Sheave: 36mm Weight: 5.3kg
High Light:

transmission line tool

,

transmission tools and equipment

SH30J 30KN Rated Load Ending Block Terminal Tackle to Tighten Up Conductor Wire



Terminal Tackle Endig Block Products

Item number

Model

(KN)

Rated Load

(MM)

Sheave Diameter

(MM)

Sheave width

(KG)

Weight

12191 SH30J 30 Φ140 36 5.3
12192 SH50J 50 Φ160 48 9.0
12193 SH80J 80 Φ180 56 16.5



Configuration: Apply to tighten up conductor wire.

Feature: Side plate can open and it is convenient for line construction.

Quick Information:

1. Model SH30J

2.30KN Rated load

3. Sheave diamter 140mm

4. 36mm sheave width

5. 5.3kg weight

6. Donghuan Brand

7. Terminal block, terminal Tackle

5.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle 05.3kg Transmission Line Stringing Tools 30KN Ending Block Terminal Tackle 1
