FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping

FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping
FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping

Large Image :  FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: FYQ500
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: GET THE LATEST
Packaging Details: WOODEN CASE
Delivery Time: 5-8WORK DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000SETS/MONTH
Detailed Product Description
MODEL: FYQ500 NAME: HYDRAULIC COMPRESSOR
OUTPUT: 20T STROKE: 20MM
CPPER: 16-500MM2 ALUMINUM: 16-400MM2
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor with Hexagon Crimping



Technical Data FYQ-500 Hydraulic Crimping Tool Crimping Pliers

Crimping range 16-400mm2
Crimping force 20T
Stroke 20mm
Crimping type hexagon crimping
Accessories 16,25,35,50,70,95,120,150,185,240,300,400,500mm2

Application

Hydraulic crimping tool hydraulic compressor with hexagon crimping is applicable to all kinds of fittings, overhead underground cable. It is equipped with high-voltage cable bushing, clip naked terminal, hexagonal die-casting.

When the mold specifications are incomplete, you can customize you wanted.

FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping 0FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping 1

FYQ 500 Hydraulic Crimping Tool Hydraulic Compressor With Hexagon Crimping 2

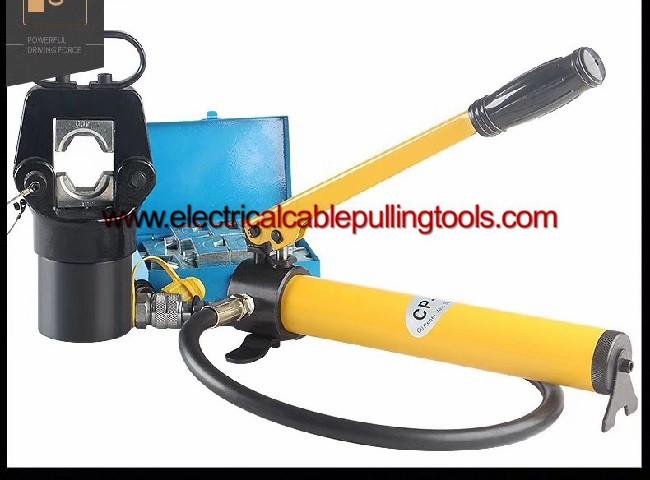

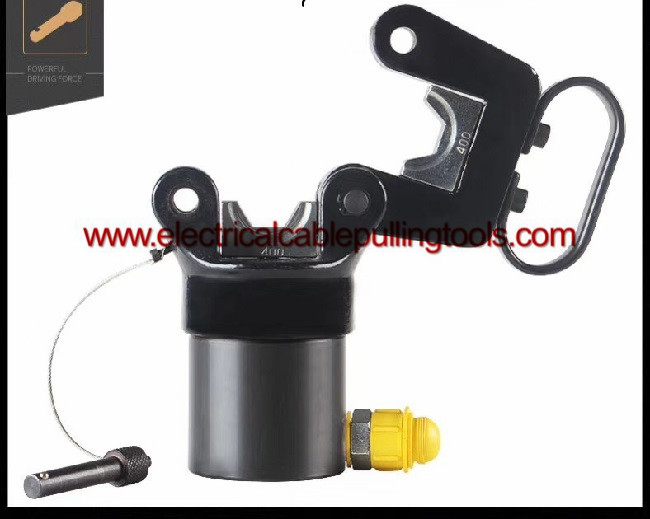

Introduction of FYQ500 hydraulic compressor:

FYQ500 can work with the CP180,CP700 HAND PUMP, under the no electricy environment to compressing the aluminum and copper termial, Al range is from 16-400mm2. and copper is 16-500mm2.

Also to enhance the working effeciency, you can apply the electrical hydraulic pump outside, under 10KV to 500KV, to press the sleeve, clamp, terminals and so on. The sealing is so perect and faster best.
