Power Construction Diesel Powered Winch , Cable Pulling Engine Powered Winch

Power Construction Diesel Powered Winch , Cable Pulling Engine Powered Winch
Power Construction Diesel Powered Winch , Cable Pulling Engine Powered Winch Power Construction Diesel Powered Winch , Cable Pulling Engine Powered Winch

Large Image :  Power Construction Diesel Powered Winch , Cable Pulling Engine Powered Winch

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JJM5C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 10-15 sets/month
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets / month
Detailed Product Description
Model: JJM5C Certification: ISO
Force: 5 Ton Feature: Speedy Diesel Enine
Apply: Power Construction Using: Cable Puling
High Light:

gasoline powered winch

,

portable capstan winch

5 Ton Speedy Diesel Engined Power Cable Pulling Winch For Power Construction



Diesel Engine Powered Winch 5 Tons Diesel Engine Hoist Winch is used for tower erection, stringing in electric power line construction.It is using the diesel engine, three gear level, pulling force slow :50KN,quick is 23KN, the pulling speed accordingly is 5.5m/min, and 14m/min.

Technical Data
Model Type Tower Gear Pulling Force(KN) Pulling Speed(m/min)
JJM-5C Diesel Engine Slow 50 5.5
Quick 23 14
Reverse   7

5 Ton Speedy Diesel Engined Power Cable Pulling Winch For Power Construction Feature:

Small size & compact structure.

The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

Light weight.

For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

High efficiency.

It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

Safe and reliable.

The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

Widely used.

According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.

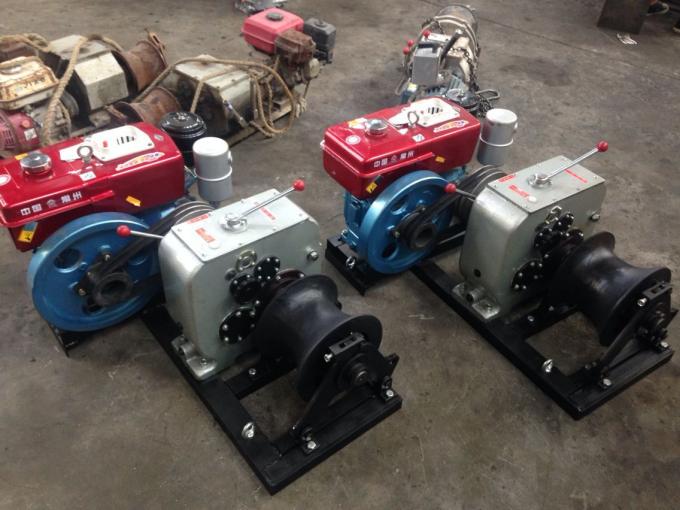

Power Construction Diesel Powered Winch , Cable Pulling Engine Powered Winch 0

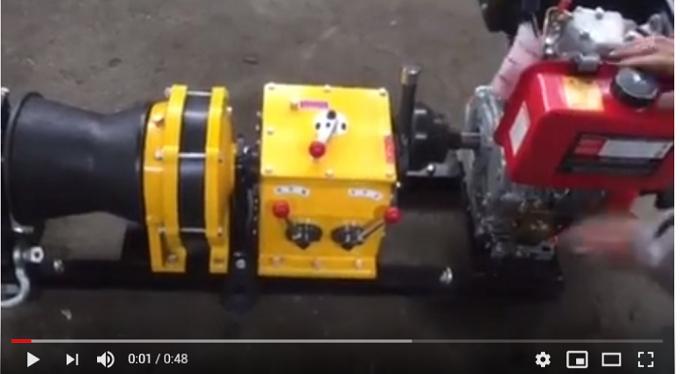

Please click below picture to find the video about application method

Power Construction Diesel Powered Winch , Cable Pulling Engine Powered Winch 1
