ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter

ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter
ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter

Large Image :  ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: ZB
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: negotiable
Packaging Details: Customized
Delivery Time: 5 - 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Detailed Product Description
Model: ZB Name: Anti-twist Running Board
OPGW: 11-22 Mm Diameter Weight: 2 X 12.5 Kg
Space: 2 M Load: 20 KN
High Light:

wire pulling tools

,

fiber optics tools and equipments

ZB Model Anti Twist Running Board Tools For 11-16mm OPGW Diameter

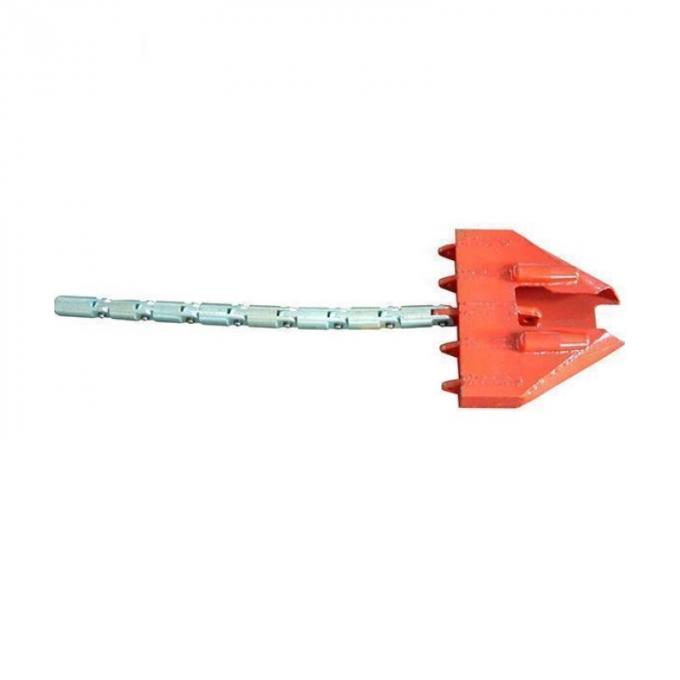

Anti Twist Running Board Introduction.

Our anti twist tension stringing tool comes with two running boards. It is applicable to the construction of optical power ground wire abbreviated as OPGW. The gap of anti twist running board is 2m. This product is directly screwed on the OPGW. It can pass through the sheave groove with the diameter of 660mm.

Quick Infomation

ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter

Model;ZBP-20,generally, two work together

Space:2m

Working torque:32Nm

Suited diameter of OPGW:11--16mm

Weight:2x12.5kg

Data Sheet
ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter
Item No.
Model Rated load (KN) Anti-twisting torque force (N.m) OPGW size range (mm) Overall weight (kg)
20118 ZBP-20 20 32 11-16 2 X 12.5

Application

ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter

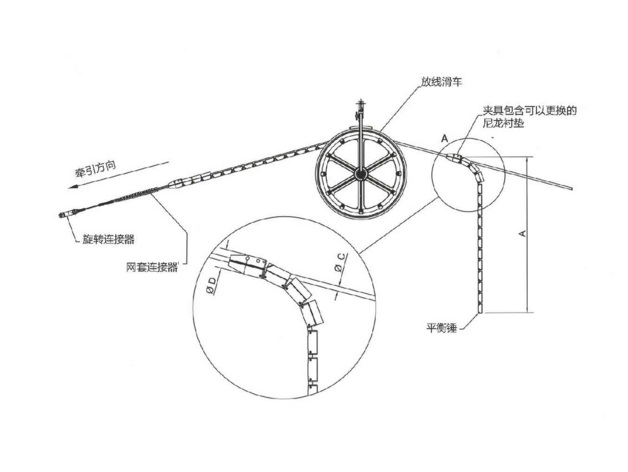

This running board is just for OPGW stringing.It is used for fiber optic cable stringing. The cable could be prevented spiraling by this tool. It is installed directly on the head of OPGW cable, with interval distance 2 meters for 2 pieces of devices.

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter 0ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter 1

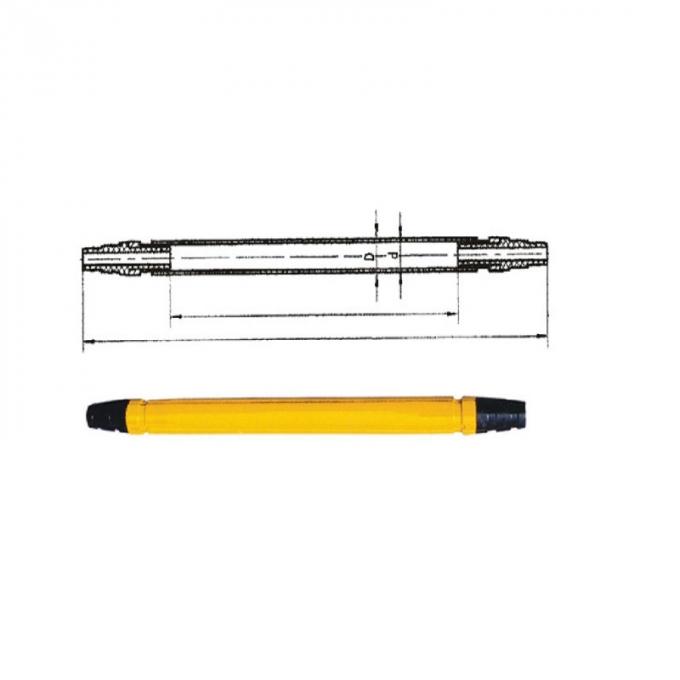

Other Optical Fiber Cable Stringing Equipment

ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter 2ZB Model Anti Twist Optical Fiber Cable Tools For 11 - 16 Mm OPGW Diameter 3
