Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines

Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines
Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines

Large Image :  Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLW
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Model: SLW25 Name: Cable Pullin Grips
Cable Dia: 20 ~ 25 Mm Load: 15 Kn
Weight: 1 Kg Material: 304,316 Steel
High Light:

cable pulling device

,

cable pulling accessories

Cable Socks Cable Wire Rope Pulling Grip Wire Rope Sock Wire Mesh Grips



The use of the cable sock:

Cable Socks Cable Wire Rope Pulling Grip Wire Rope Sock Wire Mesh Grips:

Trapping cable first, and then choose an employ or lifting tools holding the sock, now we achieved the goal of stringing,at same time,we also can use cable to hanging the sock,Cable sock is mesh structure, more drawing and more tightly,,it is easily wear in or take out the cable when push it to the object side.

This product was used to connect all kinds of aluminium conductor and insulation wire, ground wire, optical fiber, optical cable and cable when pay-off the line in power and communication line construction,it can pass all kinds of pay-off pulley as well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.

It’s prefect tools in the field of electric power construction,communication lines, offshore oil field, wind power manufacturing, mobile company, electric power, railway, shipbuilding, cable, construction, steel, petrochemical,mechanical industry and so on.

Please choose suitable sizes.

Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines 0

Technical Data:Cable Socks Cable Wire Rope Pulling Grip Wire Rope Sock Wire Mesh Grips

Item Number Model Diameter of Suitable Cable (mm) Rated Load (kN)
21361 SLW16 Φ12~16 8
21362 SLW20 Φ16~20 10
21363 SLW25 Φ20~25 12
21364 SLW37 Φ25~37 18
21365 SLW50 Φ37~50 28
21366 SLW60 Φ50~60 15
21367 SLW80 Φ60~80 20
21368 SLW100 Φ80~100 25
21369 SLW120 Φ100~120 30
21370 SLW150 Φ120~150 30

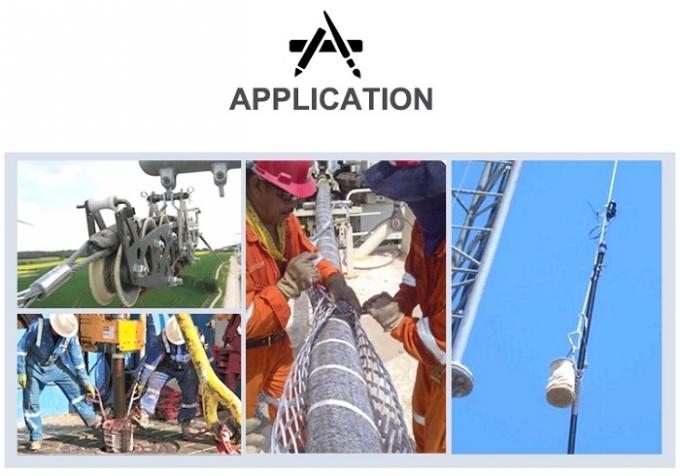

Application Site:Cable Socks Cable Wire Rope Pulling Grip Wire Rope Sock Wire Mesh GripsGloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines 1

How to use the cable pulling grip?

1.Start the lacing from the eye end or anchoring end of the cable grip

2.Thread the lace through the first two loops of the split and pull

3.Don not pull the lace too tight at this stage leave a space between adjoin-ing loops roughly equal to the width.

4.As you continue the length, pull the open sides of the grips as wide apart as required.

5.Try to achieve an even and neat lace-up as this assists with the strength of the grip when pulling.

6.Finally, tie the end of lace once or twice round the end of the cable grip twisting the ends together securely.Excess lace can be cut off.

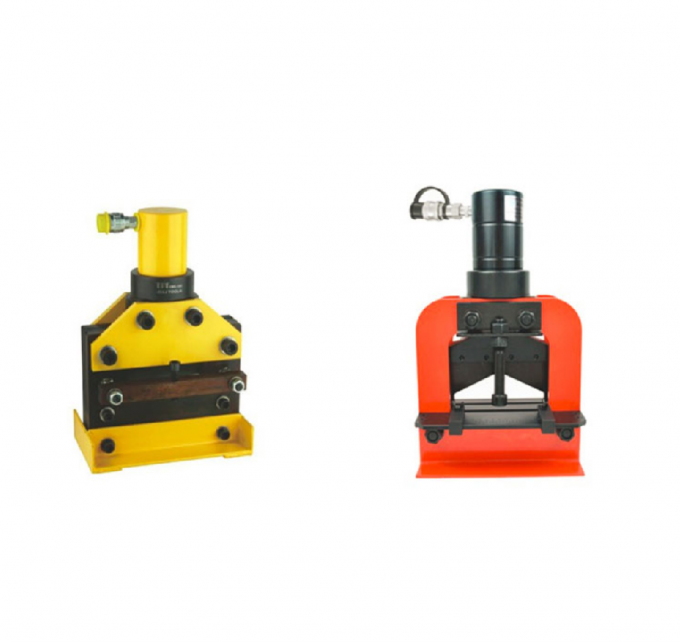

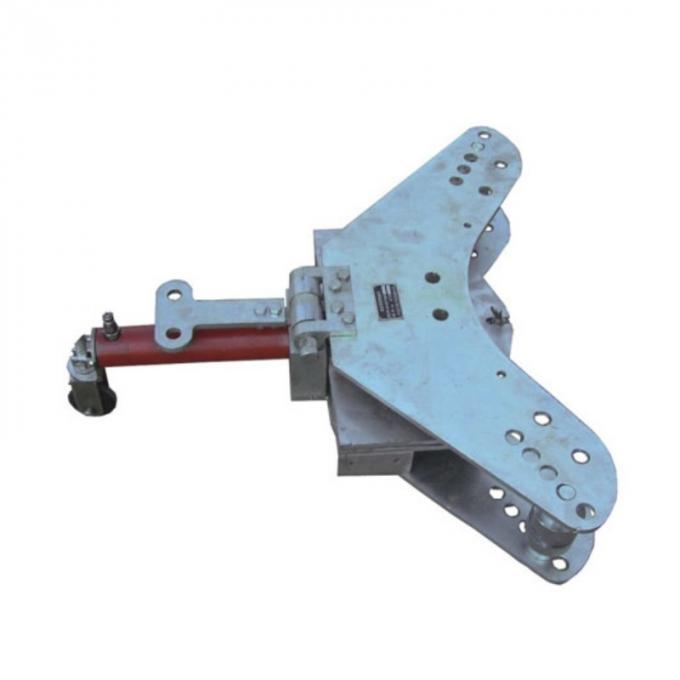

Other Underground Cable Tools:

Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines 2Gloss Cable Pulling Accessories Wire Rope Pulling Grip For Communication Lines 3

FAQ:

1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.

Factory price
We are the trading company with our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.
