Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave

Certification
China Ningbo Lingkai Electric Power Equipment Co., Ltd. certification
China Ningbo Lingkai Electric Power Equipment Co., Ltd. certification
I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Mr. Guillermo

Thanks for your support, open our Kenya market larger and better.

—— Mr. John

The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I'm Online Chat Now

Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave

Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave
Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave

Large Image :  Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SLW
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5 - 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pcs / month
Detailed Product Description
Model: SLW20 Cable Dia: 16 ~ 20 Mm
Load: 10 KN Weight: 0.8 Kg
Material: Stainless Steel Name: Cable Grips Puller
High Light:

cable pulling device

,

cable pulling accessories

SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands Weave



Cable Grips Cable Pulling rope socks:

SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands WeaveThe cable is first covered, and then pulled by manual or lifting tools, so as to achieve the purpose of wiring and protecting the cable. The cable can also be hung with a net (note that the net body of the net sleeve is gridding, so that it becomes tighter and tighter. It is very convenient to use if you want to loosen only by pushing in the opposite direction of the cable.

Technical Data:

SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands Weave

Item Number Model Diameter of Suitable Cable (mm) Rated Load (kN)
21361 SLW16 Φ12~16 8
21362 SLW20 Φ16~20 10
21363 SLW25 Φ20~25 12
21364 SLW37 Φ25~37 18
21365 SLW50 Φ37~50 28
21366 SLW60 Φ50~60 15
21367 SLW80 Φ60~80 20
21368 SLW100 Φ80~100 25
21369 SLW120 Φ100~120 30
21370 SLW150 Φ120~150 30

Application:

SLW50 Stainless Steel Single Side Dragging Cable Grip With Strands Weave

Used for traction power transmission line construction in use.

Related Product

There are many types we can provide,also can do as your demand.

Different types with different specifications,We are OEM,we can do as your demand.

Cable grips(also known as:cable nets,intermediate nets,wire nets,cable nets,power nets,cable nets,fiber nets, ground nets).

Shipping term Shipping time Shipping address
By Express 3-5 days Door to door
By air 5-7 days Port to port
By sea 15-45 days Port to port

Material

This products is made of double strands galvanized wire to weave,uniform grid high strength non-slip.All the materials of our cable grip contain hot galvanizing,304 stainless steel,316 stainless steel(Single strand,double strands and triangular loop)

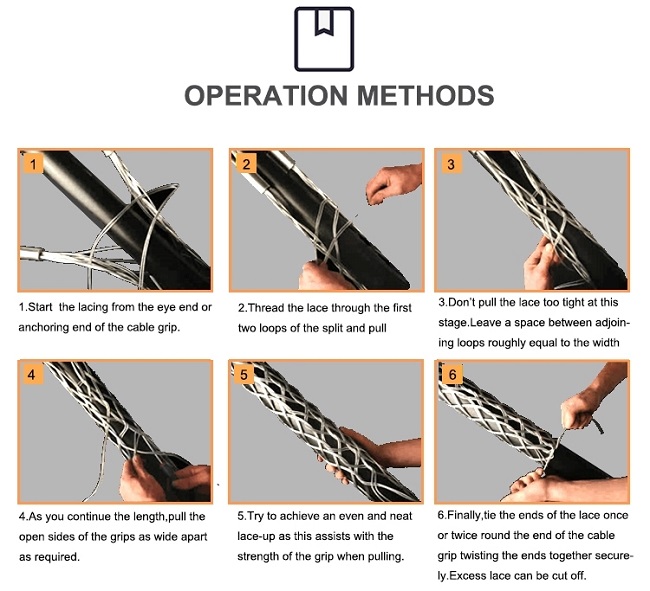

How to use the cable pulling grip?

1. Start the lacing from the eye end or anchoring end of the cable grip

2.Thread the lace through the first two loops of the split and pull

3. Don not pull the lace too tight at this stage leave a space between adjoin-ing loops roughly equal to the width.

4. As you continue the length, pull the open sides of the grips as wide apart as required.

5. Try to achieve an even and neat lace-up as this assists with the strength of the grip when pulling.

6. Finally, tie the end of lace once or twice round the end of the cable grip twisting the ends together securely.Excess lace can be cut off.

Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave 0

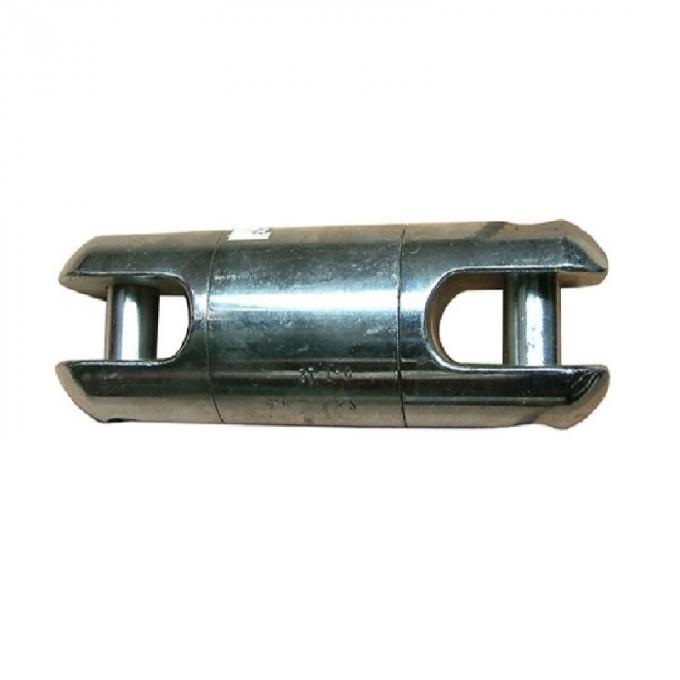

Other Underground Cable Tools:

Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave 1Single Side Underground Cable Tools Dragging Cable Grip With Strands Weave 2

FAQ:

1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
